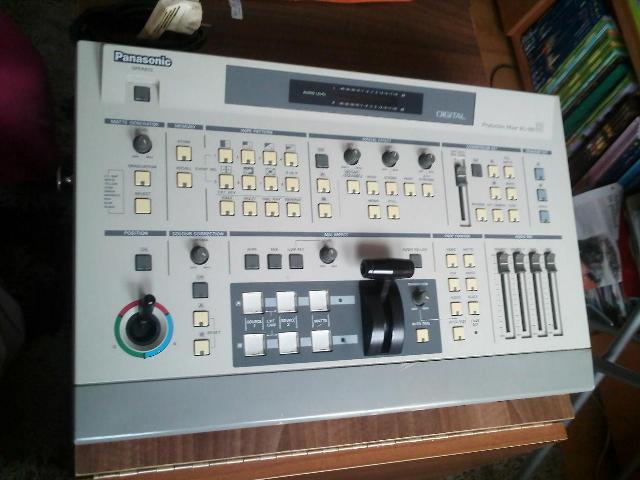

Selling my Video Mixer : Panasonic WJ-MX 30.
Good condition,all controls working fine.Also included : 6 BNC adapters,3 RCA to RCA cables.
Mail to : cry_ss@yahoo.com
Romania
Shipping only in Europe
Price : 280 euro.
Technical details:

Digital Special Effects:
-- Strobe: field strobe for clear still pictures with adjustable interval time.
-- Still: field freeze for clear still pictures
-- Mosaic/Scramble: mosaic size adjustable. Scramble effect appears on the second touch of Mosaic on/off button.
-- Negative: negative/positive reversal
-- Paint (posterization): level adjustment
-- Mono: B/W monochrome picture
-- AV Synchro: Any combination of all digital visual effects can be programmed to trigger with selected levels of the accompanying audio.
-- 107 Wipe Patterns: The combination of 7 basic keys can create 107 wipe patterns. Wipe patterns can be externally selected via RS-232C terminal.
-- Multi Wipe: x3/x6/x9/x36 multiplication of an identical pattern and stripe variation.
-- Picture-in-Picture function: B bus picture can be compressed in selectable 1/4, 1/9, 1/16 size of a full screen. Double Picture-in-Picture function compresses both A and B videos. Every mode can be trimmed with hard/soft edges borders, shadow, shadow & border.
-- Wipe Boundary Effects; Soft/Border (8 Matte Colors available).
-- Joystick Positioner: Allows moving wipe location.
-- Wipe Direction: One way scrolling/Reverse/ Normal Reverse selectable Wipe/Mix Section
-- Luminance Key: video signal can be processed for more flexible wipe/mix effects.
When Luminance Key is selected, low-luminance portions of the B-bus picture are cut off and mixed with the A-bus video: Key level control can be used to adjust luminance key level.
-- Automatic A/B Roll (Auto Take): transition rate adjustable.
-- Audio Follow: audio mix can be synchronized to A/B rolling.
-- External camera input can be routed to either A or B bus.
-- External camera signal can be used as a key signal. Fade-in/Fade-out Video/Title/Audio individually or synchronously faded.
-- Fade to/from White/Black/Matte Color
-- Automatic fade run (Auto Fade) with transition adjustment Down Stream Key
-- Selectable sources: Character Generator, A bus, B bus, Ext. Camera
-- Key level control adjusts pattern sensing level Reverse switch permits interchanging patterns high and low luminance portions.
-- Selectable 8 Colors matte Generator to the DSK (Down Stream Key) patterns or titles
-- Edge Effects: shadowing (2 levels)/drop shadow/ edge effects (2 levels)
-- Connection with optional WJ-KB30, WJ-KB50, WJ-KB15 character generators - 3 Gradation Modes: Upper shading, lower shading, and upper/lower shading.
-- Automatic Programmable Effects: The WJ-MX30 incorporates eight separate memories that enable virtually instant recall of frequently used effects. Serial switching of Events 1-8 using Auto Take or GPI trigger. Effect run transition control is available.
-- Color Correction: Adjustment of color in image shot from any input source, per A/B program bus.
-- Audio Mixing Capability A bus/B bus/Aux and Mic; 4 audio level adjustments. Visible audio level meter is available.

Specifications:
-- Source Input: x3 (SOURCE 1/2/EXT CAM) Composite Video Input: 1.0 Vp-p, 75 ohms, NTSC Signal, BNC x 2 S-Video Input: Y Signal; 1.0 Vp-p, 75 ohms, C Signal; 0.288 Vp-p, 75 ohms, Mini Din 4 connectors x 2
-- Audio Input: Source 1/2, pin jack x 2, 6dBs, 20k ohms (unbalanced), left and right Auxiliary Audio: input x 1, 6dBs, 20k ohms, pin jack (unbalanced), left and right
-- Microphone Input: 60dBv, 600 ohms unbalanced, tip-ring sleeve phone jack x 1
-- External Camera Input: 1.0 Vp-p, 75 ohms, NTSC composite signal, BNC x 1 Y signal; 1 0 Vp-p, 75 ohms, C signal; 0.286 Vp-p 75 ohms, Mini Din connector x 1
-- GPI Input: Make-contact, BNC x 1 Character Input: 10 pin connector x 1 for optional Character Generators, WJ-KB15, WJ-KB30, WJ-KB50
-- Program Output: x 2 (Program Out 1/2)
-- Composite Video Output: 1.0 Vp-p, 75 ohms, NTSC signal,BNC x 2
-- S-Video Output: Y signal; 1.0 Vp-p, 75 ohms, C signal; 0.286 Vp-p, 75 ohms, Mini Din 4 connectors x 2
-- Audio Output: Program Out 1/2, pin Jack x 2, 6dBs, 1 kohms (unbalanced) left and right
-- Preview Output: 1.0 Vp-p, 75 ohms, NTSC composite signal, BNC x 1 Advance Sync Output: 4.0 Vp-p, 75 ohms, BNC x 2
-- Headphone Output: -20dBv ~ -80dBv , 8 ohms unbalanced, tip-ring sleeve phone jack x 1
-- Digital Effects: Nega, Mosaic, Scramble, Mono, Paint, Still, Strobe, A/V
-- Synchro Matte Colors: Color bar, white, yellow, cyan, green, magenta, red, blue, black
-- Wipe Patterns: 107 patterns
-- Joystick Control: Positioner, color correction
-- Audio Mixer: Source 1/2, Aux, Mic
-- Others: Audio follow, Auto-take, Auto-fade, Event Memory Video Sampling: 4:1:1, Y-910fH, 8-bit component
-- Frequency Range: Sync; 15,734kHz ± 300Hz SC; 3.579545 MHz ± 40Hz
-- Frequency Response: Y/C signal 4.5 MHz (at -3dB)
-- Composite video signal: 4.5 MHz (at -3dB) Audio: 20 - 20kHz (at ± 3dB) Gain: Unity (Video) S/N (Typical): 56dB (S-video), 50dB. (Composite), 70dB. (Audio at 1 kHz)
-- Power Source: 120V AC, 60Hz
-- Power Consumption: Operation mode approximately 31W Standby-mode approximately 7W Ambient
-- Dimensions (W x H x D): 18-7/8 x 5-3/16 x 12-1/8 (480 x 132 x 308 mm) Weight: 10.3 lbs. (4.7 kg)
